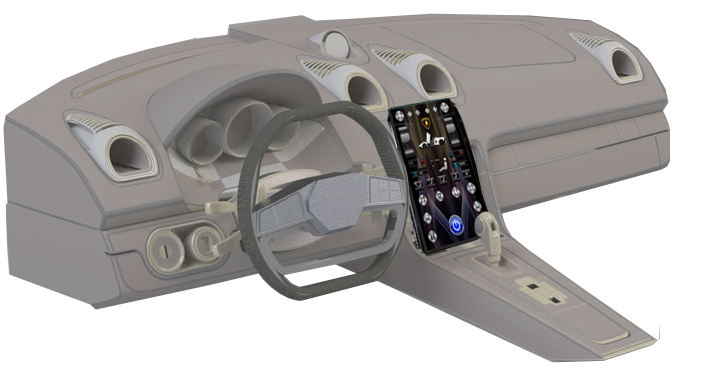

**Product shown with optional 12 inch screen

$1,000 USD + shipping

Available Graphic Skins

---

100R Series Features

• 1024 x 600 Resolution, IPS, 7 x 4 Inch, capacitive touchscreen
• Speedometer, tachometer, voltmeter, engine temp., fuel level, oil or fuel pressure
• Optional oil pressure, fuel pressure, boost, oil temp., transmission temp. gauges
• Odometer, Trip A, Trip B
• Door open indicator (2 Door default)
• Digital turn signals, high-beam indicators
• Date & time
• Audio & Video media player (w/ line out audio)
• USB linked, phone mirroring (Bluetooth not available)
• On-screen shift indicator
• Warning icons & messages
• Standard graphic skin

---

Connect to any Tach source:

• Hardwired – for carb/TPI, non-computer engines
• PCM/ECU – for computer controlled engines
• CAN Bus / OBD2 – for modern model years

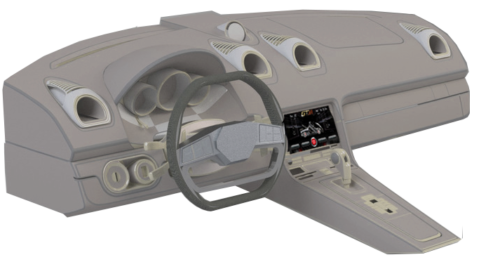

The LCDi-100R digital dash  is a standalone unit for monitoring engine functions, controlling mechanical and cabin features.  This product is capable of connecting various engines to customized vehicle projects seamlessly.

Comprised of a remote touchscreen display and an interface module, the LCDi-100R system is able to handle an array of digital/analog inputs and outputs.  Update any vehicle interior with state of the art graphic interfaces that can be personalized to be one of a kind.

Our screens are sunlight readable and display in high-definition, with quick-acting displays for important functions such as tachometer readouts.

Standard functions include speedometer, tachometer, voltage, fuel level, temperature, odometer, pressure gauge, and trip counters.

The LCDi-100R system is also compatible with Vintage Air/Restomod climate control systems and AccuAir e-Level suspension systems.
